Wire Mesh Water Filters

Most wire mesh filters can be cleaned by removing accumulated debris through backwashing with water, using compressed air to dislodge particulates, or soaking in an appropriate cleaning solution followed by rinsing. For heavier fouling, ultrasonic cleaning is effective. Stainless steel mesh withstands repeated cleaning cycles without degrading, and filters are typically designed for easy removal and reinstallation to simplify maintenance.

Wire mesh water filters are commonly manufactured from SS316 stainless steel for corrosion resistance, though options such as brass, copper, aluminum, and specialty polymers are available depending on the chemical compatibility, temperature range, and conductivity requirements of the application.

Knitted wire mesh is formed by interlocking loops of wire, offering flexibility, stretch, and variable porosity control, while compressed wire mesh is densified knitted mesh that provides added rigidity, vibration damping, and structural stability, often used in gaskets, seals, and de-coupling rings.

Wire mesh filters are typically available with wire thickness ranging from 0.10mm to 0.30mm (customizable up to 0.36mm), with opening sizes commonly between 4mm and 5mm, and density control ranging from near-zero to over 98% void volume, allowing precise tuning of filtration efficiency and flow characteristics.

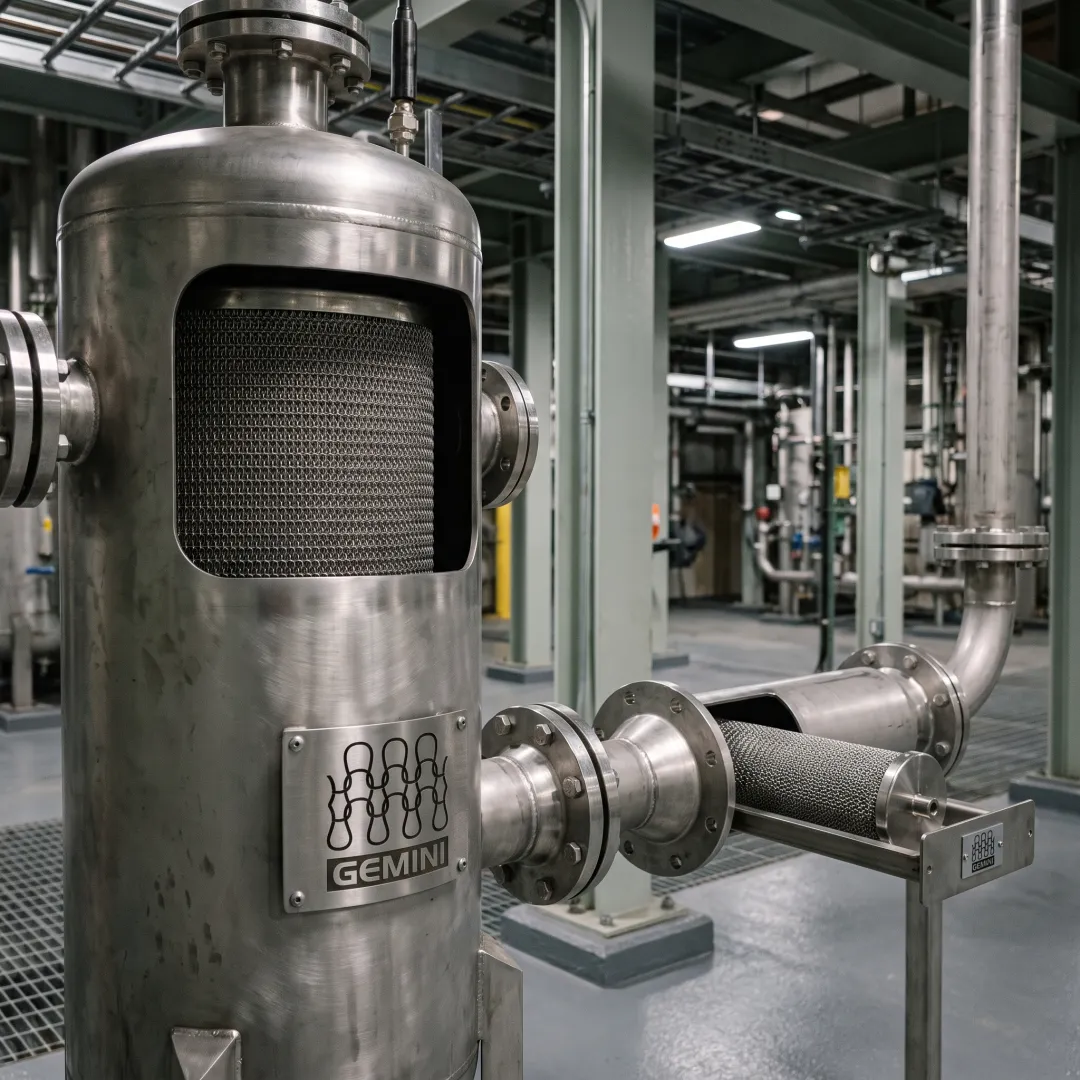

Wire mesh water filters are used across oil and gas processing, chemical manufacturing, food and beverage production, pharmaceutical manufacturing, automotive systems, and power generation, where they filter liquids and gases, separate contaminants, and support mist elimination and separation processes.

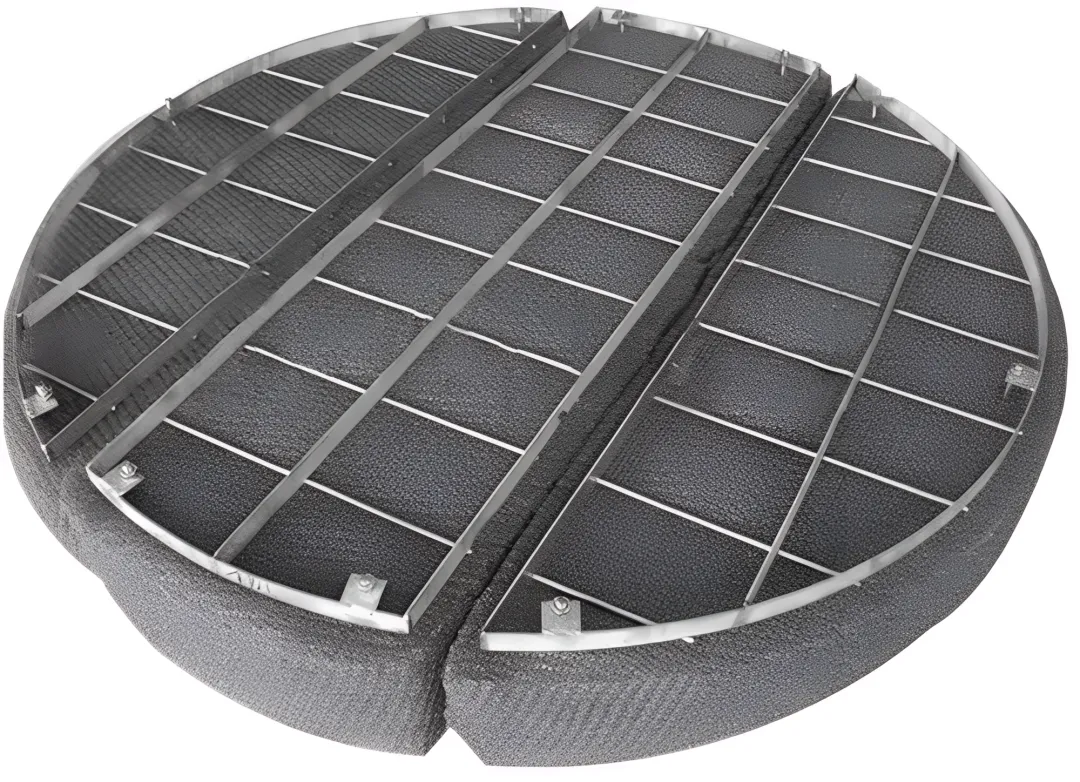

Yes, wire mesh filters can be custom-fabricated into rings, rectangular panels, gaskets, seals, and demister pads to fit specific equipment dimensions and process requirements, with options for horizontal or vertical installation and minimum order quantities typically starting around 100 kg.
