Braided Earth Straps and Earthing

Earth straps provide a secure, highly conductive path to ground for electrical equipment. Their primary functions are to protect personnel from electrical faults, prevent static discharge, and shield electronics from electromagnetic interference (EMI). Their flexibility allows them to connect moving or vibrating parts, ensuring a constant, reliable ground connection.

Tinned copper offers an excellent combination of conductivity and corrosion resistance. The copper core provides a low-resistance path for electricity, while the tin coating protects it from oxidation, especially in humid or harsh industrial environments. This ensures a reliable, long-lasting electrical connection without degradation over time.

A flat braided strap offers a larger surface area than a round wire of the same cross-section. This provides lower impedance at higher frequencies, making it more effective for EMI/RFI shielding. Its inherent flexibility also allows for easier installation in tight spaces and between components that may move or vibrate during operation.

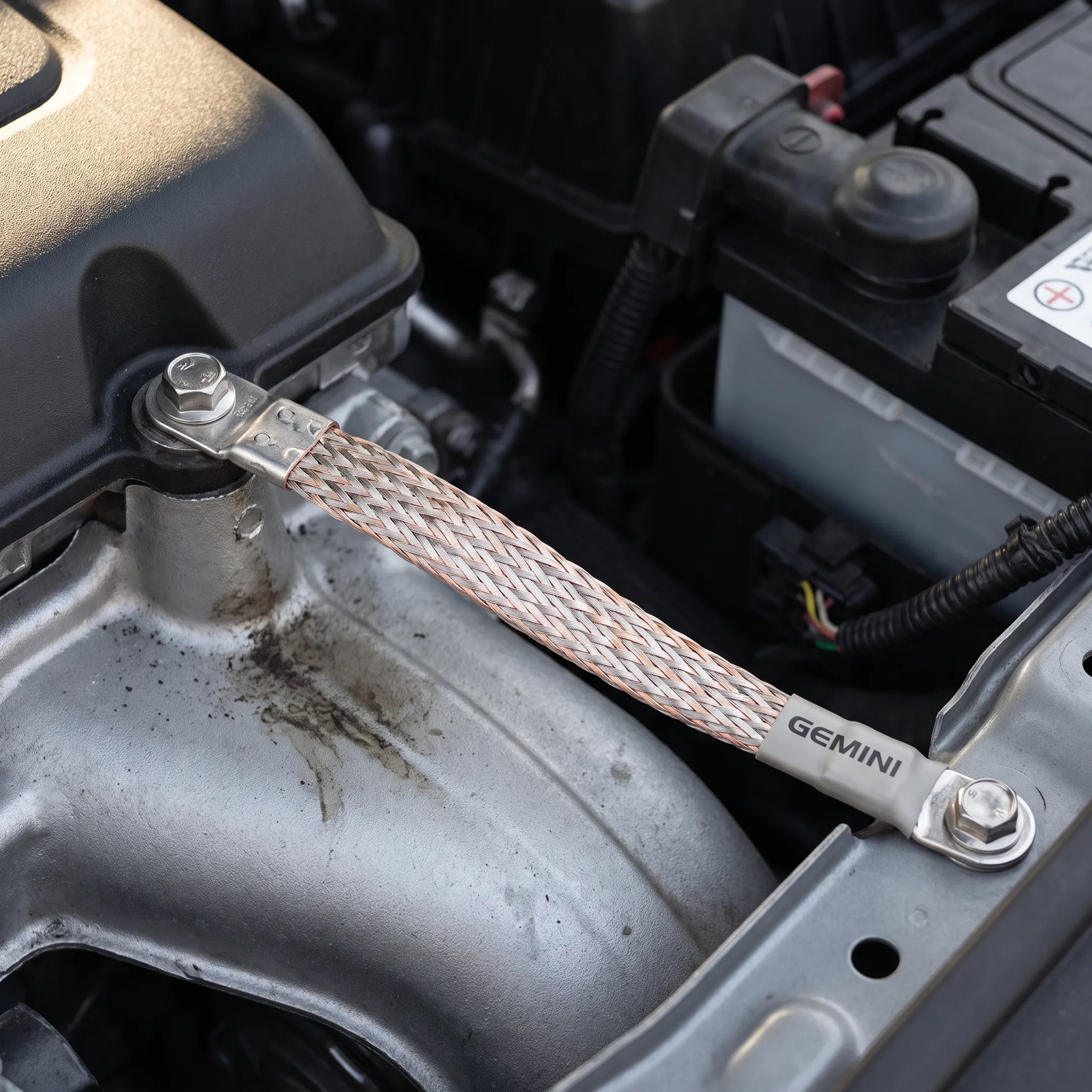

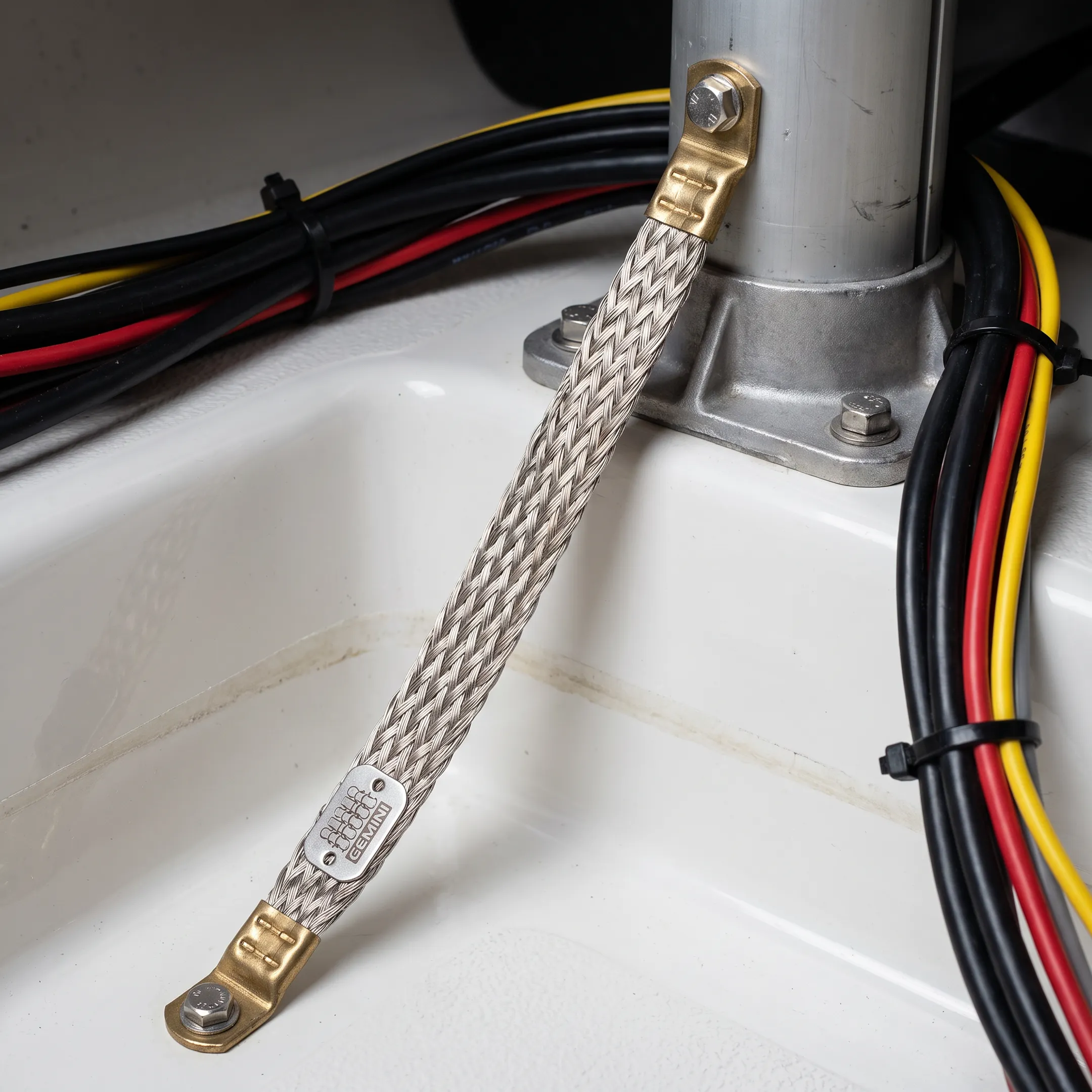

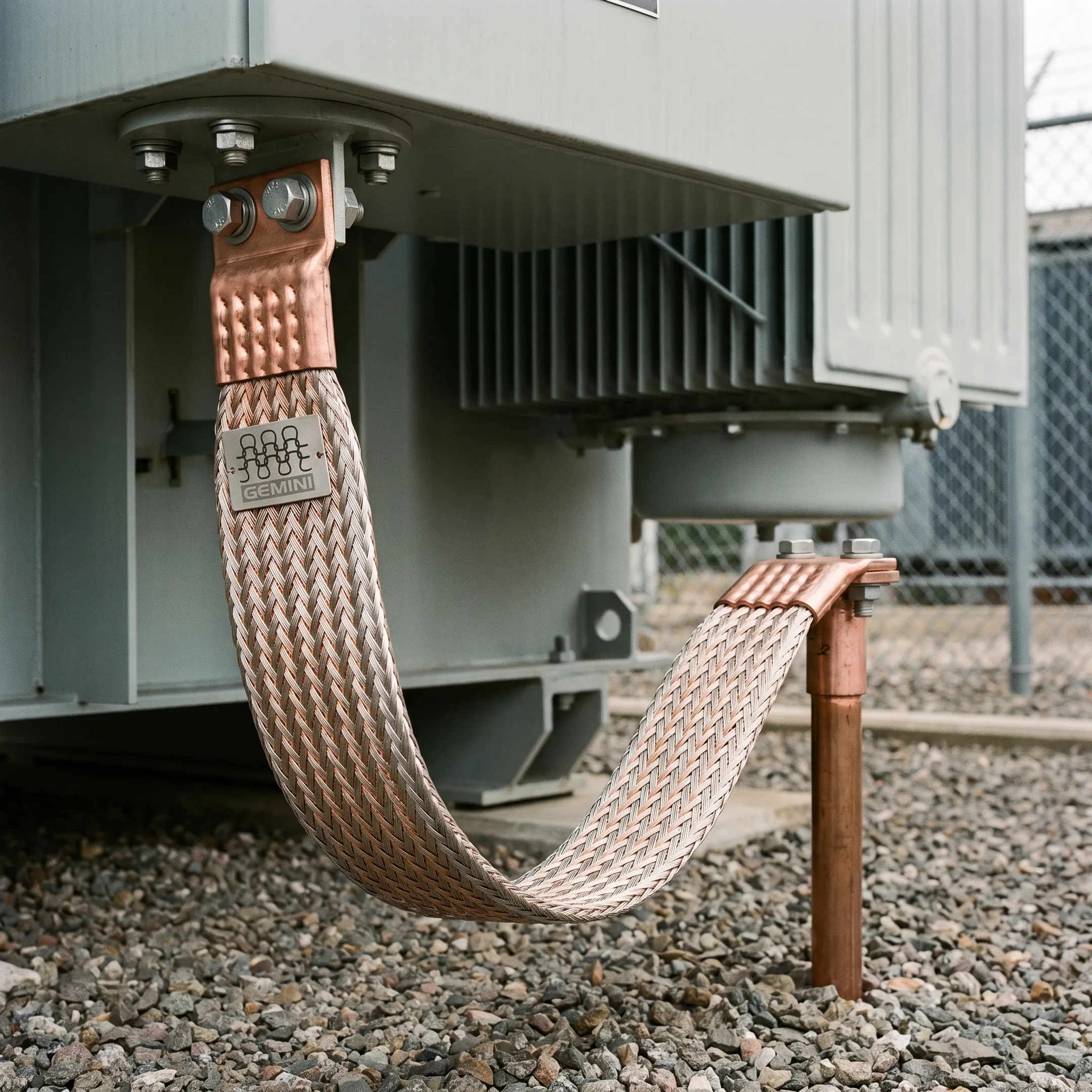

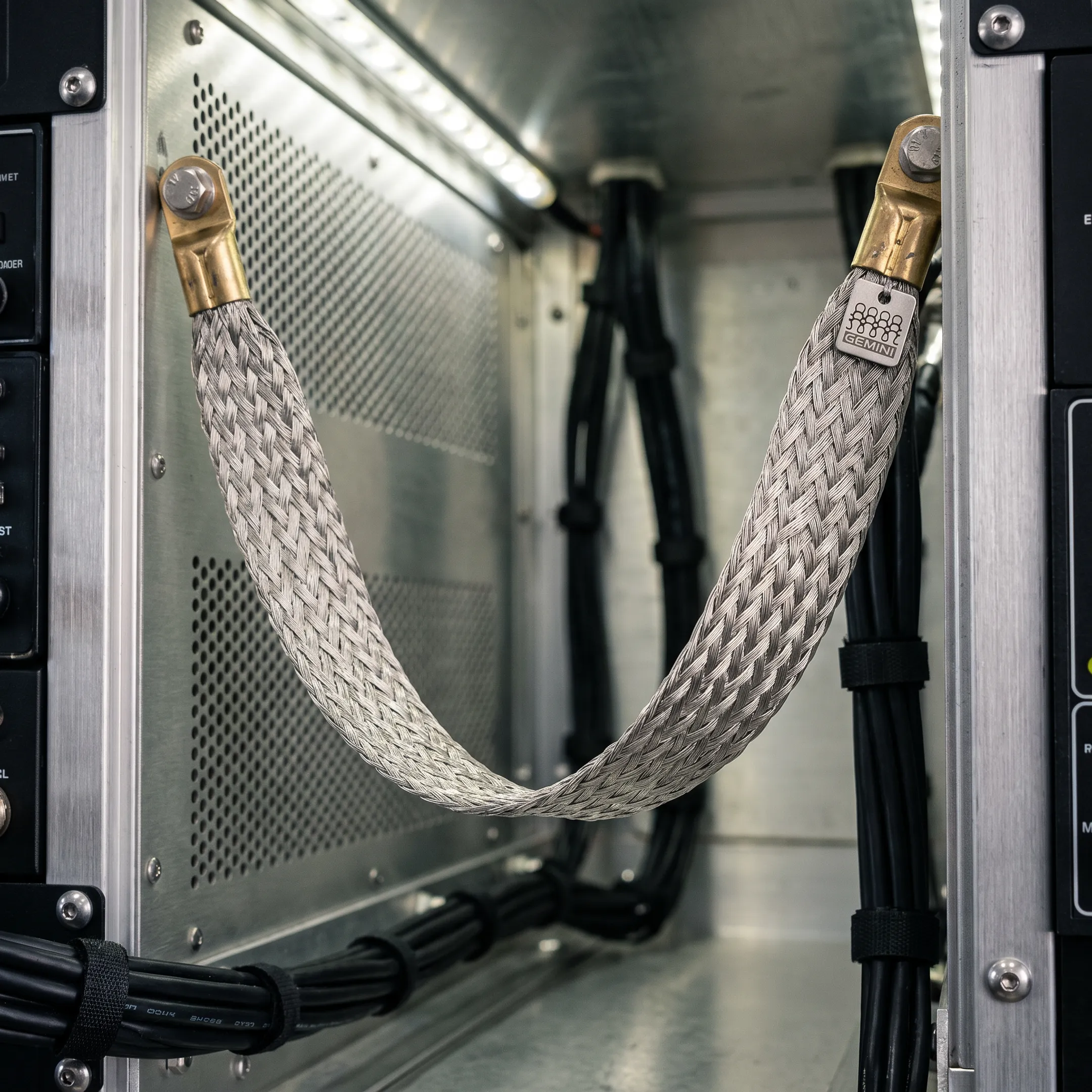

Braided earth straps are critical in industries like automotive for engine grounding, aerospace for avionics shielding, and marine applications for corrosion resistance. They are also widely used in industrial automation, power transmission equipment like transformers and generators, and for grounding electrical cabinets and machinery.

Earth straps can be terminated in several ways. Common methods include crimping on terminals or lugs for secure bolted connections, soldering directly to a component, or using specialized clamps. The choice of termination depends on factors like the required current capacity, vibration levels, and ease of assembly or maintenance for the specific application.

Yes, we specialize in custom solutions. Our braided earth straps can be manufactured to your specific requirements for length, width, thickness, and termination style. We accommodate various connector types, including lugs and splices, to ensure a perfect fit for your unique electrical grounding or shielding application.
