Compressed stranding pulls assembled wire strands through a forming die to shrink air gaps between them, without cutting into the metal volume that carries current. The result: a conductor that fits into tighter spaces while keeping the same electrical performance.
This matters more than it sounds. Cable diameter drives conduit sizing, trenching costs, and installation labor. Get the strand type wrong, and you're either overpaying for space you don't need or fighting a conductor that won't bend where you need it to.
This guide covers what compressed conductors actually are, the three main types you'll encounter, and how to pick the right one for your project.
TL;DR
- Compressed stranding shrinks diameter to roughly 97% of a standard round conductor at the same metal volume
- Three main types: Round Compressed, Compact (Shaped), and Compressed Unilay
- Compaction boosts space efficiency and stripping quality; shaped types add manufacturing complexity
- Pick by space, flexibility, and install budget—not by which type is most compact
What Is a Compressed Wire Conductor?
Compressed stranding is a manufacturing process. Standard concentric strands are assembled, then drawn through a forming die that squeezes the strands closer together.

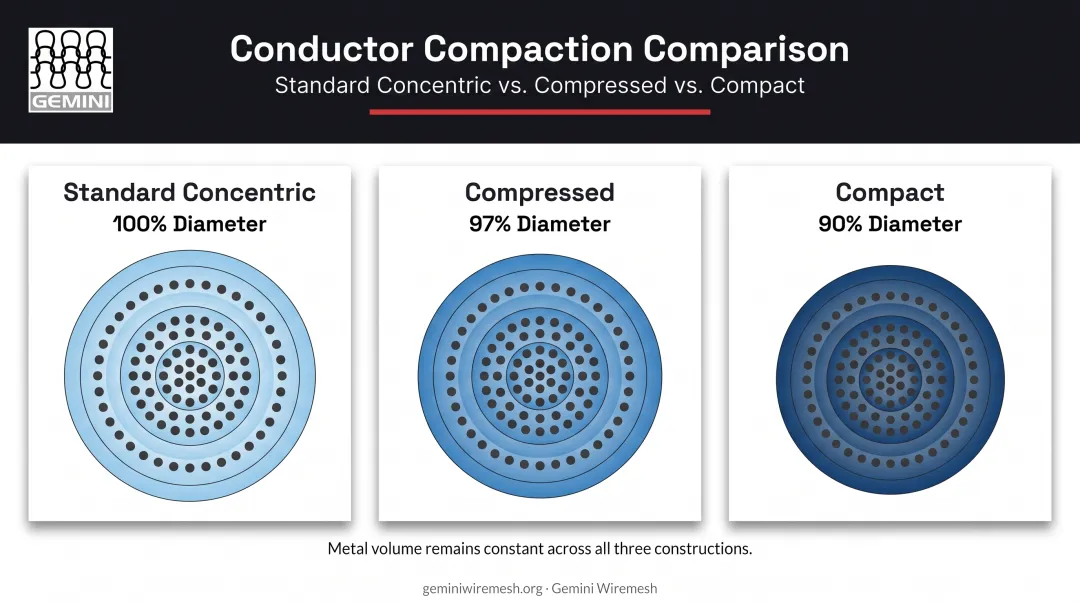

According to NEMA's 2019 Field Rep Training Module on Electrical Conductors, this brings the conductor down to roughly 97% of its original diameter while retaining the same volume of metal. That's a meaningful distinction: you're not losing conductive material, you're just eliminating wasted space between strands.
For comparison, NEMA describes true compact stranding, using a series of forming dies, as reaching about 90% of original diameter. Compressed and compact are related but not identical processes. Don't use the terms interchangeably when specifying a product.
That difference shows up in real cable constructions across:
- Power distribution cables
- Control and instrumentation wiring
- Underground utility conductors
- High-voltage transmission lines
Why Compressed Strand Types Matter in Wire & Cable Manufacturing

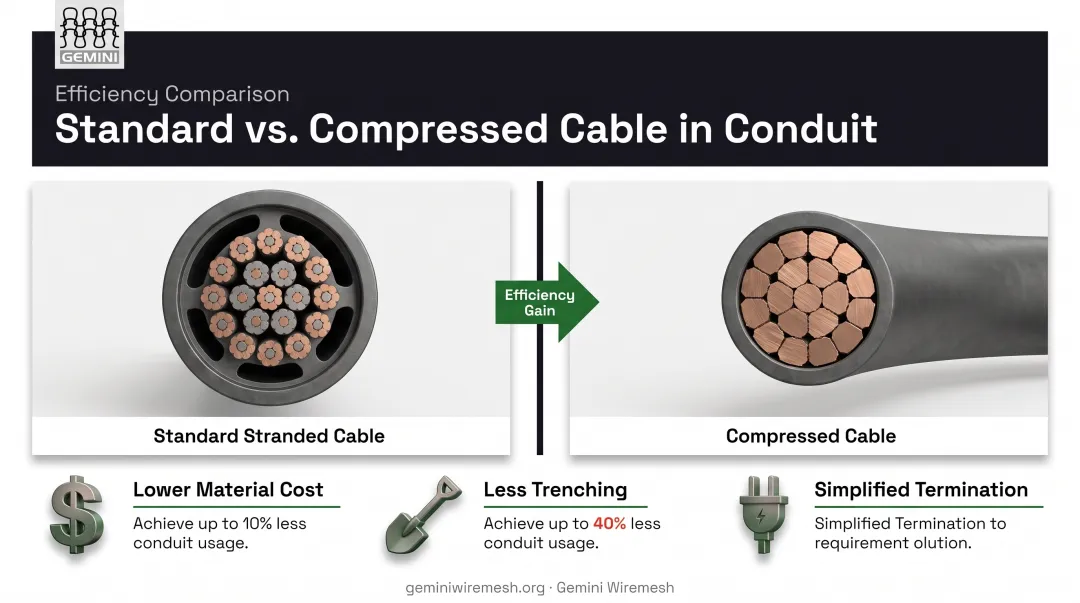

Air gaps between strands waste space and create a design liability. Bulkier conductors need larger conduit, more trenching, and more material overall.
Compression closes those gaps. NEMA notes that compressed and compact stranding reduce overall cable diameter, which directly helps fit more conductors into a given conduit run. There's also a practical installation benefit: NEMA identifies a smoother conductor interface, which makes stripping cleaner and terminations more reliable.
What compression does NOT change:
- The volume of conductive metal in the cross-section
- The fundamental resistance-per-area relationship defined by the conductor's standard
Standards like ASTM B496 require compact round conductors to meet specific DC-resistance and cross-sectional area targets, but they don't claim compaction itself produces a universal resistance improvement. If a supplier promises a fixed percentage resistance drop from compaction alone, ask for the underlying test data.
The real win is space and material efficiency, not a conductivity boost from compaction alone. That's still a significant advantage:
- Smaller conduit runs mean lower material costs
- Denser conductor packing means less trenching for underground runs
- Uniform round profiles simplify termination hardware selection
Types of Compressed Wire Conductor Strands

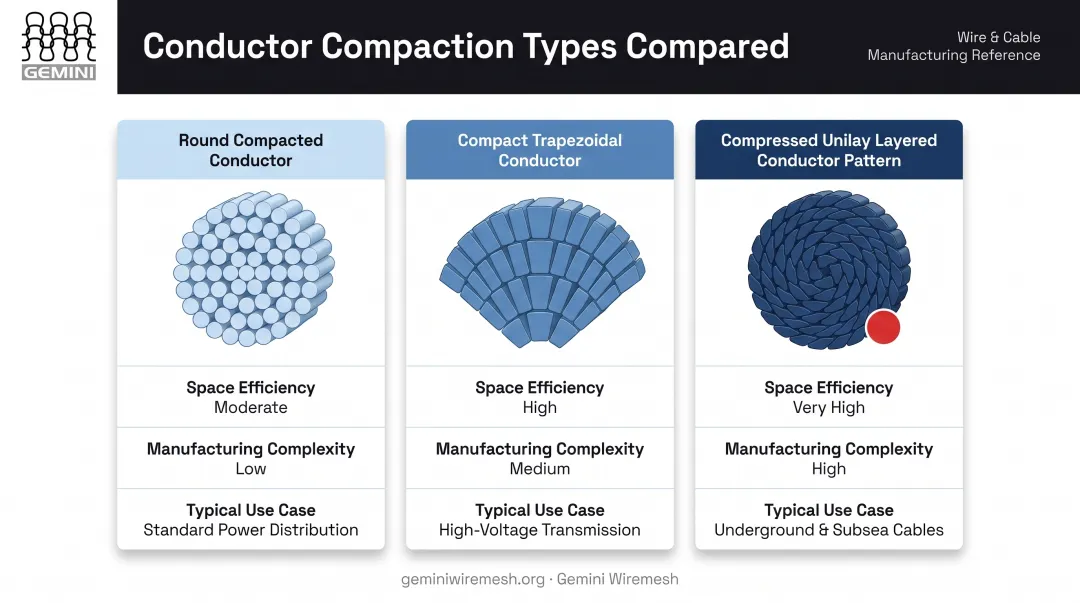

"Compressed conductor" names a category, not a single product. Three main variations exist, each solving a different mix of space, flexibility, and installation needs.
Round Compressed Conductors
Round compressed conductors start as standard concentric strands, then get pulled through a single forming die. The strands tighten slightly, but the conductor keeps its round cross-section.
How it differs: This is the least aggressive compaction method. Unlike shaped conductors, there's no pre-forming step. Strands stay round.
Best suited for: General-purpose power and control cables where moderate space savings are enough, and where a conventional round termination hardware setup matters.
Key strengths:
- Simple, well-established manufacturing process
- Good balance between reduced diameter and flexibility
- Compatible with standard connectors and lugs
Limitations: Less space-efficient than shaped alternatives. If your project is genuinely conduit-constrained, this may not squeeze out enough diameter reduction.
Compact (Shaped) Conductors
Compact conductors take a different route. Strands get pre-formed into trapezoidal, fan, or tile shapes before final compaction, eliminating the largest air gaps a round shape can't avoid.
Prysmian's guide to cable stranding describes sector-shaped conductors as pie-slice geometries used in multi-core cables. That shape supports larger conductor cross-sections without extra fillers or oversized glands.
How it differs: Geometric shaping (fan, tile, sector) replaces the round profile entirely, unlocking higher density than any round conductor can achieve.
Best suited for: Multi-core sector cables, underground utility runs, and high-voltage installations where every millimeter of diameter matters.
Key strengths:
- Maximum space efficiency in the compressed category
- Smaller overall cable diameter reduces trenching and conduit costs
- Better utilization of available cross-sectional area in multi-core designs
Limitations: The pre-forming step adds manufacturing complexity. Expect higher cost and longer lead times than round compressed alternatives.
Compressed Unilay Conductors
Unilay construction lays all strand layers in the same direction, unlike concentric stranding where layers alternate. Compression can then be applied on top, in either round or compact form, for extra diameter reduction.
ASTM B787 documents a specific 19-wire combination-unilay construction. Its outer diameter is engineered to match the compressed-stranded equivalent, so manufacturers can shrink conductors without moving to full compact shaping.
How it differs: Combines unilay's uniform lay direction with compaction, landing between round compressed and full compact shaped in terms of both diameter reduction and manufacturing complexity.
Best suited for: Control and instrumentation cables where a smaller diameter helps, but full shaped compaction is overkill.
Key strengths:
- Smaller diameter than standard concentric compressed conductors
- Simpler to manufacture than fully shaped compact types
- ASTM-defined constructions that match compressed-stranded outer diameters
Limitations: Still not as space-efficient as tile or fan-shaped compact conductors. Less common in heavy-duty power applications.
How to Choose the Right Compressed Strand Type
The right compressed strand type is the one that fits your real constraints—not the one with the highest compaction ratio. Work through these factors:
- Current capacity and DC resistance targets — Pull the required values from NEC Article 310 tables or your governing cable standard. Don't guess based on strand type alone.
- Space and diameter constraints — Conduit fill limits, trench width, or panel space will often rule out or mandate shaped conductors immediately.
- Flexibility and bending requirements — Round compressed conductors generally bend more predictably during installation than heavily shaped types.
- Manufacturing cost and lead time — Shaped compaction requires extra pre-forming steps. Build that into your procurement timeline.
- Applicable industry standards — ASTM B496, B787, B801, or IEC 60228 may dictate specific construction requirements for your project class.
- Long-term durability — Consider vibration, repeated movement, or harsh environmental exposure over the cable's service life.
Getting these tradeoffs right usually takes more than a standards checklist. A partner who works with fine-tolerance wire day to day can help you pressure-test geometry choices before the spec is locked.

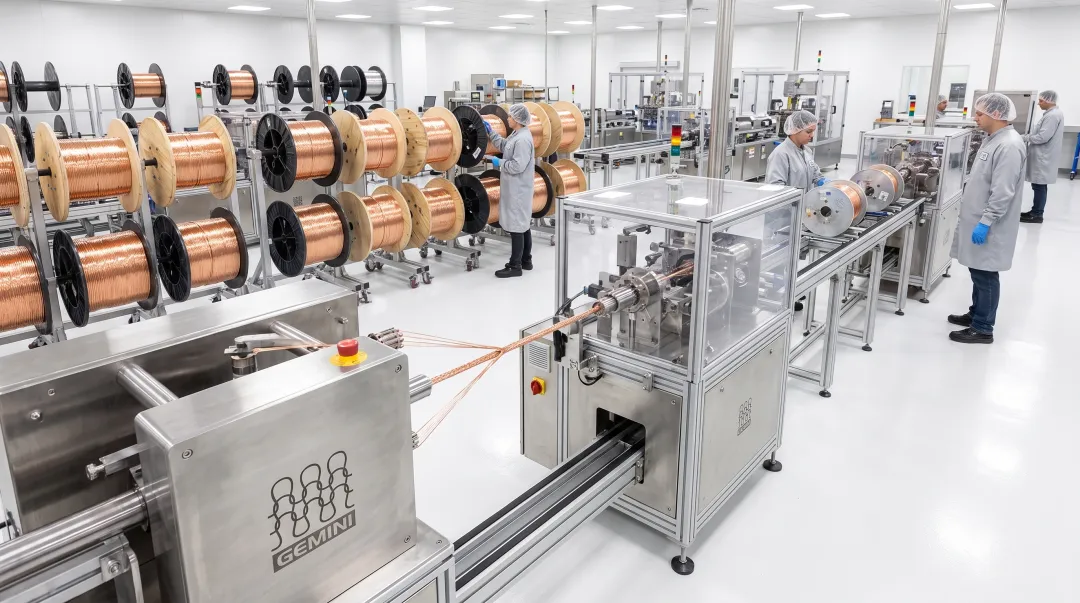

Gemini Wiremesh has spent over 30 years on precision wire fabrication, with wire diameters from 0.05 mm to 0.36 mm and adjustable strand and loop configurations in knitted mesh and tinned copper braided conductor products. That experience is a practical sounding board when braid construction, shielding, or related strand-geometry questions come up alongside the conductor decision.
What to Check Before Finalizing a Compressed Conductor Type
Before you lock in a compressed conductor type, run through these checks:
- Match compactness to need — a round compressed type often meets requirements without the cost of a more compact shaped conductor
- Budget for shaped-conductor overhead — tile and fan-shaped designs add real manufacturing time and cost
- Compare lifecycle cost, not just material price — a cheaper conductor that complicates installation or maintenance can cost more over time
- Decide from this project's specs — past familiarity alone isn't a reason to reuse a type when requirements differ
Conclusion
Compressed wire conductors help engineers balance three competing pressures: current capacity, physical size, and cost. Round compressed, compact shaped, and compressed unilay types each solve a different piece of that puzzle.
Understanding these distinctions, rather than defaulting to whatever's most familiar, leads to better procurement decisions and fewer surprises during installation.
Frequently Asked Questions
What is the difference between compressed and compact cable?
Compressed conductors retain a round shape with strands drawn slightly closer together via a single die. Compact conductors use pre-shaped strands and multiple forming dies for maximum density and minimal diameter.
What are the different types of conductor wires?
Main categories include solid wire, stranded (bunched, concentric, unilay, rope-lay), and compressed/compact variations. Each construction trades off flexibility, diameter, and manufacturing complexity differently.
What is a stranded conductor?
A stranded conductor consists of multiple thin wires twisted together into a single conductor. This offers significantly more flexibility than an equivalent solid wire of the same cross-section.
Does compression reduce a conductor's current-carrying capacity?
No. Compression reduces air gaps and diameter while keeping the same metal volume. Ampacity should still be calculated from NEC tables or engineering methods, not inferred from strand geometry alone.
Are compressed conductors more expensive to manufacture than standard stranded conductors?
Compression adds a die-forming step, which increases cost slightly over standard stranding. Compact and shaped types cost even more due to the extra pre-forming work required.
Which industries commonly use compact or compressed conductors?
These conductors see the most use in power distribution, underground utility cabling, and high-voltage transmission, where space savings and installation efficiency carry real cost benefits at scale.
