Industrial Mesh Fabrics

Industrial mesh fabric can be purchased directly from specialized manufacturers who produce custom knitted, woven, or braided wire mesh to specification. Buyers typically request quotes based on material type (stainless steel, copper, or multi-material blends), wire thickness, mesh opening size, and roll dimensions, with minimum order quantities often starting around 100 kg for bulk industrial supply.

Mesh refers to a structured material with uniform, engineered openings created through knitting or weaving metal wire, designed for specific functions like filtration or shielding with defined porosity and mechanical properties. Netting typically describes a looser, more flexible open-structure material used mainly for containment or barrier purposes, without the precision porosity control or material-grade specifications found in engineered industrial mesh fabrics.

Industrial mesh fabrics are commonly manufactured from stainless steel grades (SS304, SS316, SS316L) for general corrosion resistance, copper for high electrical and thermal conductivity, galvanized iron for cost-effective applications, and multi-material blends including brass, aluminum, and polymers for specialized chemical-resistance or shielding requirements.

Mesh openings typically range from 4mm to 5mm with wire thicknesses between 0.10mm and 0.30mm, though some products offer mesh sizes from 2 to 200 mesh with customizable wire diameters down to 0.05mm. Manufacturers can adjust porosity from near-zero to over 98% void volume to match specific filtration efficiency and pressure-drop requirements.

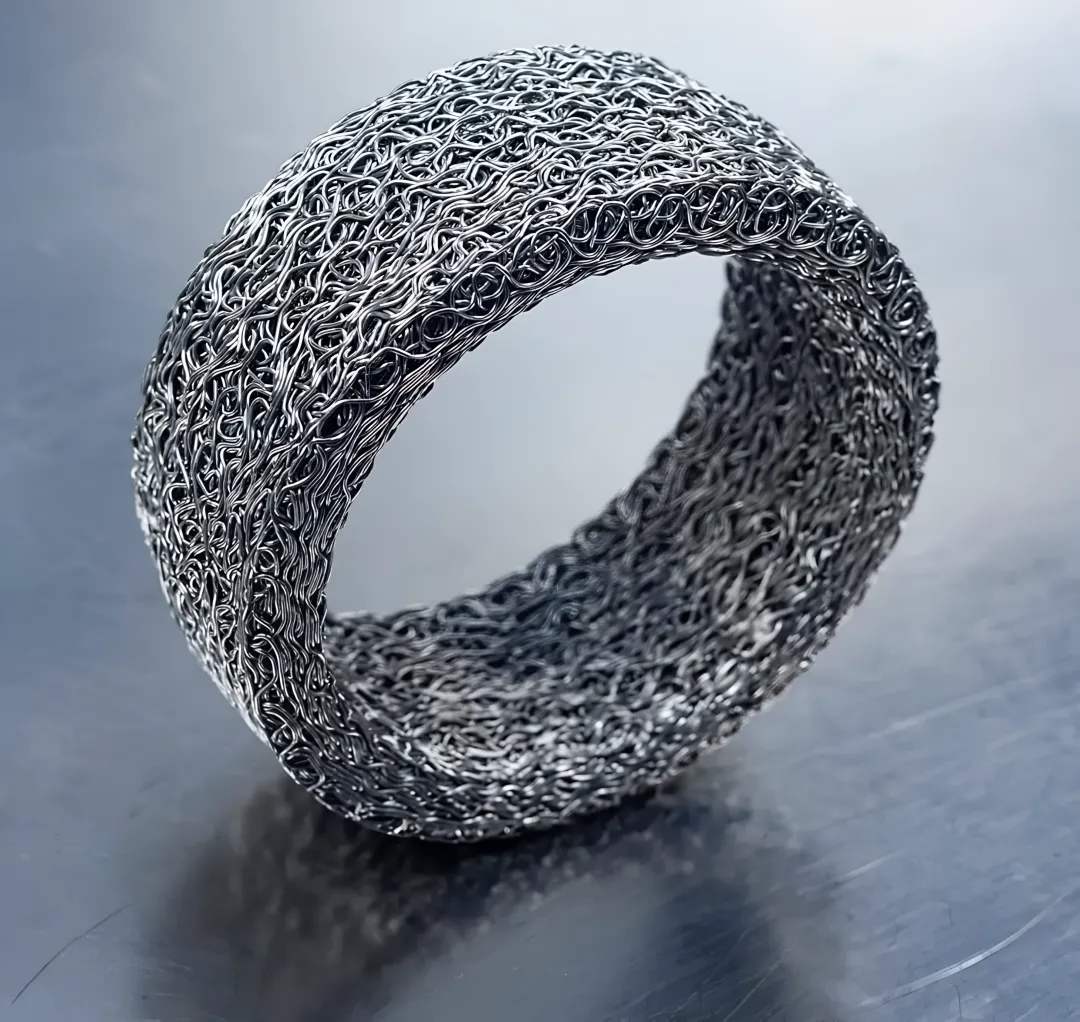

Knitted wire mesh is formed by interlocking loops, giving it exceptional flexibility, up to 300% stretching capacity, and the ability to be shaped into custom forms like rings and gaskets. Woven wire mesh uses crossed strands at fixed intervals, producing a more rigid, dimensionally stable structure better suited to precise, uniform filtration screening applications.

Yes, most metal-based industrial mesh fabrics, including stainless steel and copper variants, are up to 95% recyclable and non-toxic, making them a sustainable choice for filtration, shielding, and separation applications. This eco-friendly composition supports responsible end-of-life disposal or material recovery in industrial operations.
