100 Mesh Stainless Steel Screen Filters

A 100 mesh screen refers to a woven or knitted wire mesh with 100 wires per linear inch in both directions, creating a grid pattern with consistent opening sizes. The mesh count directly determines particle retention capability, with higher mesh numbers indicating finer weaves and smaller openings between wires.

325 mesh is significantly finer than 100 mesh. While 100 mesh has openings around 149 microns, 325 mesh openings measure approximately 44 microns. As mesh count increases, wire spacing decreases, so higher mesh numbers always indicate finer filtration capable of capturing smaller particles.

These filters are typically manufactured from 304 or 316 stainless steel for corrosion resistance and mechanical strength. Stainless steel construction withstands high temperatures, caustic chemicals, and repeated cleaning cycles, making it the preferred choice for demanding oil and gas, food and beverage, pharmaceutical, and industrial filtration applications requiring long service life.

Yes, mesh filters can be customized in wire diameter, porosity, density, and overall dimensions to meet specific flow-rate, pressure-drop, and particle-retention requirements. Manufacturers can adjust stretching and knitting parameters to achieve void volumes ranging from near-zero to over 98%, tailoring performance for unique industrial filtration needs.

These filters are widely used across oil and gas, automotive, aerospace, food and beverage, pharmaceutical manufacturing, and industrial machinery sectors. They serve applications including liquid-solid separation, mist elimination, EMI/RFI shielding, and general-purpose filtration where consistent particle retention and durability under harsh operating conditions are essential.

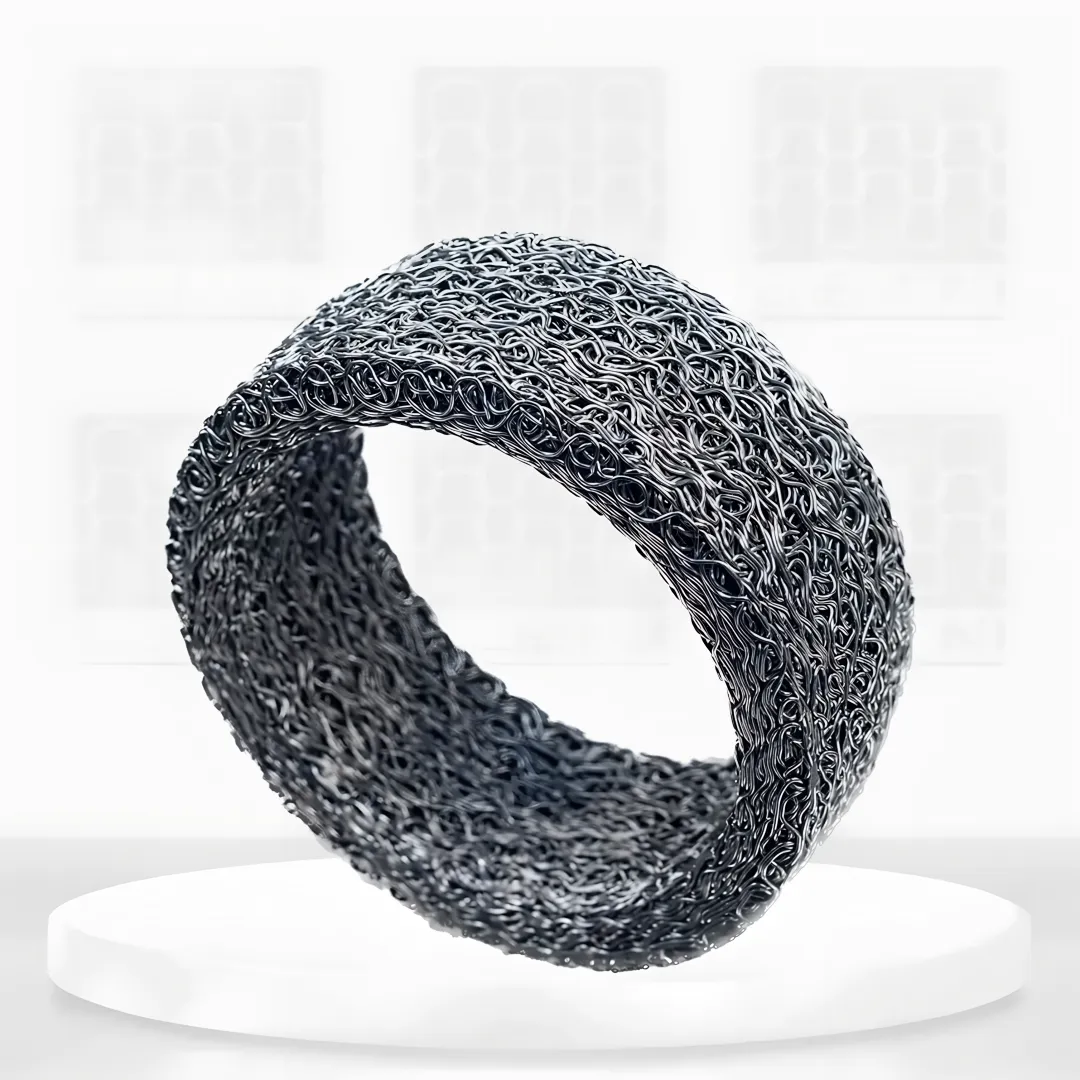

Knitted mesh filters use interlocking loops that allow for high stretch capacity, variable porosity, and flexible forming into complex shapes, while woven mesh has a fixed rigid grid pattern. Knitted construction offers greater customization for density and shape but woven mesh often provides tighter, more uniform aperture control for precision filtration.
