Choosing the wrong hardness causes real problems: gaskets that won't conform, demister pads that collapse under gas velocity, filtration media that deforms under repeated pressure cycles. These aren't cosmetic issues. They're premature failures that shut down equipment.
This guide breaks down what actually separates soft mesh from hard mesh, where each performs best, and how to specify the right one before you place an order.
Key Takeaways
- Soft mesh (annealed wire) flexes and conforms: ideal for gaskets, insulation facing, and cushioning
- Hard mesh (work-hardened wire) resists deformation: filtration and structural support
- Application stress (temperature, chemical exposure, vibration, mechanical load) should drive your choice, not texture alone
- Density and porosity control operate independently of temper, but the two combine to determine total mesh performance
What Is Soft Mesh vs. Hard Mesh in Wire Mesh Manufacturing?
Soft mesh is knitted from annealed wire. Annealing heats the wire past its recrystallization point, replacing the deformed grain structure with new, lower-stress grains. The result: lower tensile strength, but higher ductility and formability.
Hard mesh uses work-hardened (cold-drawn) wire that skips this heat treatment. Cold working increases dislocation density inside the metal, which raises tensile strength and hardness while cutting ductility. This is the same principle that makes a paperclip stiffer after you bend it repeatedly.
How Knitting Interacts With Temper
Temper isn't the only variable. The knitting process itself (loop density, stitch count, wire diameter) shapes the final "hand feel" and mechanical behavior just as much as annealing does.

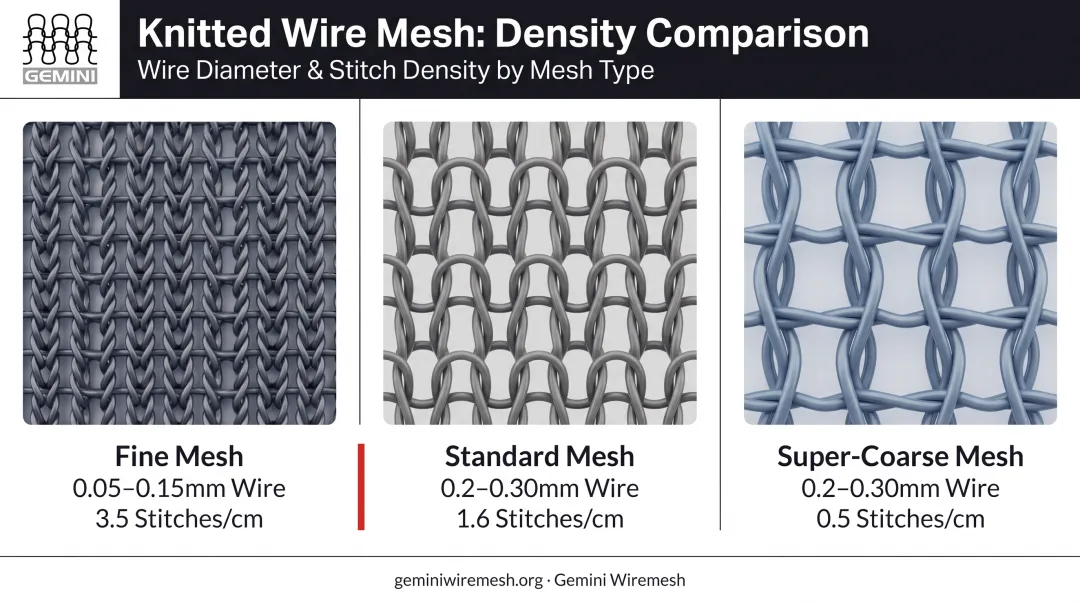

Gemini Wiremesh's own production range illustrates this:
- Fine mesh: 0.05–0.15mm wire, 3.5 stitches/cm lengthwise
- Standard mesh: 0.2–0.30mm wire, 1.6 stitches/cm
- Super-coarse mesh: 0.2–0.30mm wire, 0.5 stitches/cm
A tightly knit fine mesh in annealed wire feels different from a loosely knit coarse mesh in the same temper — even though both are technically "soft."
Soft and hard mesh can share the same base metal. Stainless steel (SS304, SS316), copper, and specialty alloys like Monel all knit either way—temper is the differentiator, not the alloy.
How Mesh Hardness Gets Measured
Manufacturers verify wire condition with standardized tests:
- ASTM E8/E8M — tension testing for yield and tensile properties
- ASTM E18 — Rockwell hardness testing
- ASTM A938 — torsion testing, useful as a ductility check
Scott Precision Wire reports 670 N/mm² (about 97 ksi) tensile strength and 20%+ elongation for annealed 0.5mm 304L wire. That range is a solid benchmark for what "soft" looks like at the raw wire level, before knitting begins.
Key Differences: Soft Mesh vs. Hard Mesh Performance
After knitting, temper shows up in four performance gaps that affect real installations.
Flexibility and Formability
Soft mesh drapes and conforms. It wraps around irregular shapes without fighting back. Hard mesh holds a fixed structural form once knitted and resists reshaping by hand.
Durability Under Mechanical Stress
Hard mesh handles abrasion and repeated flexing better in vibration-heavy environments. Soft mesh, while more forgiving to install, can deform permanently under sustained mechanical load.
Compression and Recovery
- Soft mesh: Compresses easily; suited to cushioning and sealing where fit matters more than rigidity
- Hard mesh: Holds void volume under load, protecting filtration surface area and flow capacity
Corrosion and Temperature Behavior
Temper has little effect on chemical resistance; alloy choice drives that, not wire condition. Temper does affect thermal cycling response, because work-hardened wire carries more internal stress that can shift under repeated heating and cooling.
| Property | Soft Mesh | Hard Mesh |
|---|---|---|
| Tensile strength | Lower | Higher |
| Flexibility | High | Low |
| Typical use | Gaskets, insulation facing | Filtration, demisters, structural support |
| Shape retention under load | Low | High |
| Corrosion resistance | Alloy-dependent (not temper-dependent) | Alloy-dependent (not temper-dependent) |
On lifespan: Hard mesh generally outlasts soft mesh in continuous filtration duty because it deforms less over repeated pressure cycles. No universal fatigue-life figure exists across the industry. Service life still depends on loop geometry, density, and the operating conditions in your equipment.
Industry Applications: Where Soft and Hard Mesh Are Used
Soft Mesh Applications
- Insulation blanket facing — removable insulation blankets and mattresses need mesh that wraps around irregular equipment
- Gaskets and seals — conformability matters more than rigidity here
- EMI/RFI shielding cushioning — flexible tapes that seat into tight assembly gaps
Gemini Wiremesh supplies knitted mesh rolls for these applications: flattened or crimped stainless steel, 0.10–0.30mm wire, in widths from 25mm to 1,000mm. The rolls are built for insulation covers and flexible facing.
Hard Mesh Applications
- Demister pads and mist eliminators — need to hold shape under continuous gas flow without collapsing
- Knock-out drums — structural stability under pressure and flow variation
- Filtration units in oil & gas and petrochemical processing — shape retention directly affects filtration efficiency
Sulzer's KnitMesh mist eliminators rely on a tortuous knitted-mesh bed for separation in scrubbers, evaporators, and knock-out pots. That design shows why shape retention under continuous flow matters more than flexibility in this category.

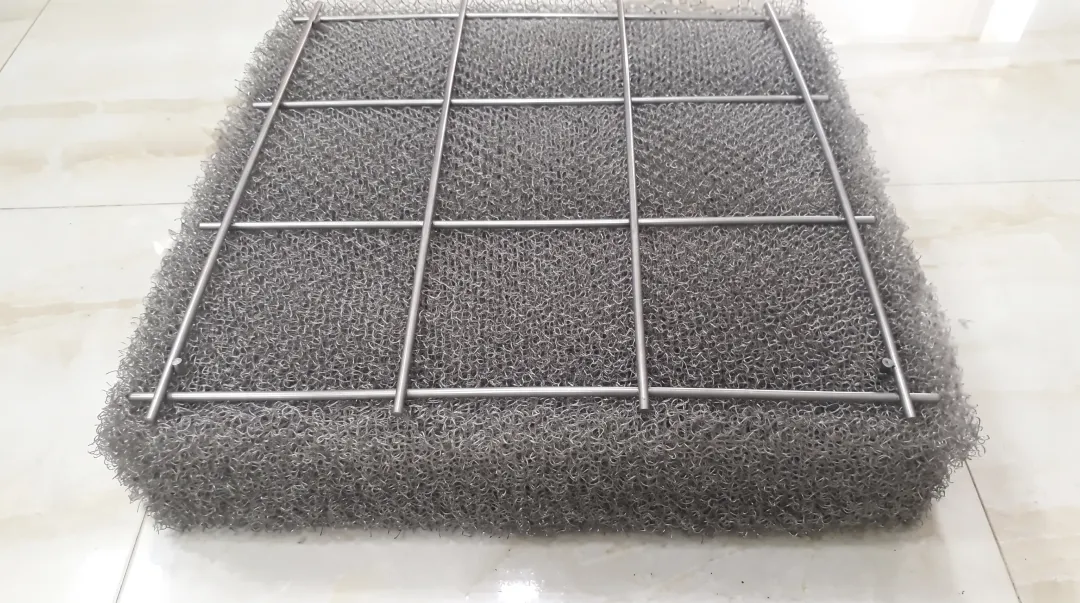

Gemini Wiremesh demister pads use SS316 stainless steel and 0.10–0.30mm wire. Each pad is custom-built for specific vessel dimensions and can be installed horizontally or vertically for cleaning access.
Cross-Industry Note
Bird-control and pest-exclusion product manufacturers often specify semi-hard mesh, balancing weather durability against ease of shaping around building features.
Gemini Wiremesh engineers both soft and hard knitted mesh variants with density control from near-zero to over 98% void volume, letting fabricators match porosity precisely to filtration or insulation specs without over-engineering the mesh.

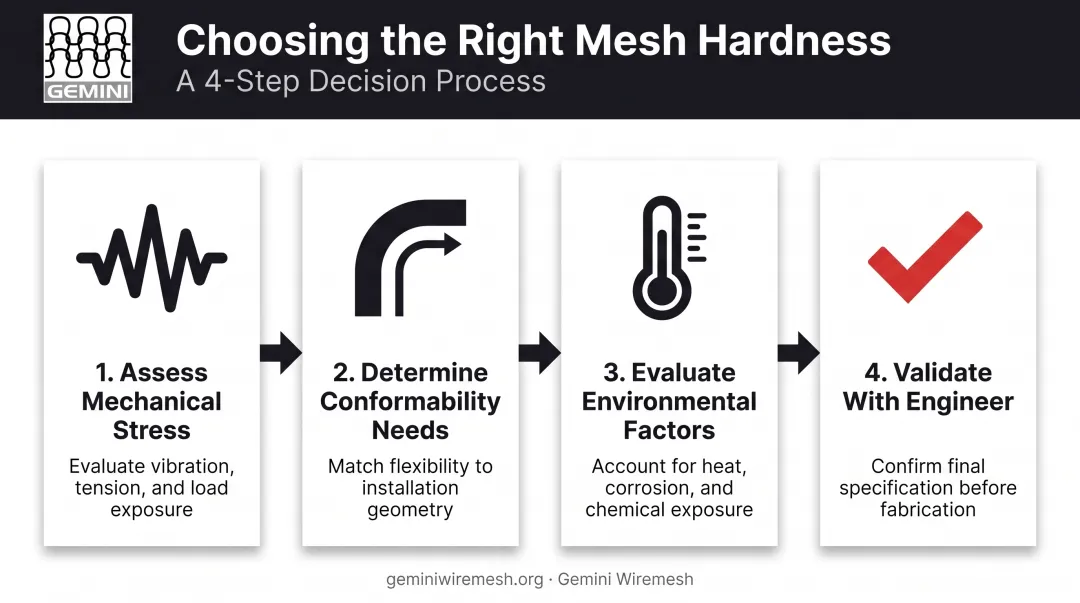

How to Choose the Right Mesh Hardness for Your Application
Run through these questions before finalizing a spec:
- What mechanical stress will the mesh face? High vibration or repeated flexing favors hard mesh; occasional handling favors soft.
- Does the application need conformability or shape retention? Gaskets and blankets need the drape of soft mesh. Filtration and structural support need the rigidity of hard mesh.
- What environmental factors apply? Harsh chemical or high-temperature service often sets alloy first, then hardness. Longer service life and shape-critical duty usually favor harder, more stable knits.
- Have you validated with an engineer? Wire gauge, temper, and knit density interact in ways that aren't always intuitive from a spec sheet alone.
Skipping step four is where most selection mistakes happen. A mesh that looks right on paper can behave differently once gauge, temper, knit density, and porosity are factored in together.
Why Manufacturing Precision Matters for Soft and Hard Mesh Quality
Inconsistent annealing or uneven knitting tension creates unpredictable mesh behavior. Batches that should perform identically end up with different flex, strength, and lifespan characteristics. That inconsistency shows up downstream as premature failure, and it's hard to trace back to the source.
ISO 9001:2015 certification enforces the process consistency that prevents those failures:
- Documented controls on annealing and knitting tension
- Traceable production steps across every batch
- Repeatable quality checks on flex, strength, and knit uniformity
Gemini Wiremesh operates under this certification, so wire handling and knit quality stay consistent from run to run.
Precision knitting technology also expands what's possible within either temper category. Gemini's 300% stretching capacity lets soft or hard mesh form into a wide range of shapes and densities without compromising the knit structure. Combined with porosity control from near-zero to 98% void volume, engineers can match mesh specifications to exact application requirements.
Frequently Asked Questions
What is the difference between soft mesh and hard mesh in wire mesh products?
Soft knitted mesh uses annealed wire, so it flexes and forms easily around irregular surfaces. Hard knitted mesh uses work-hardened wire for higher rigidity, strength, and resistance to deformation.
Which type of mesh is better for filtration applications?
Hard mesh generally performs better in filtration because it holds its shape and void volume under continuous load. Soft mesh suits gasket and insulation applications where conformability matters more.
Can soft mesh be converted to hard mesh or vice versa?
Temper is set during manufacturing through annealing or work-hardening and can't easily be changed afterward. If your application needs a different temper, specify it at the time of order.
Does mesh hardness affect corrosion resistance?
No — corrosion resistance depends mainly on alloy choice (SS304, SS316, copper, or similar alloys), not wire temper. Temper does, however, influence how the mesh behaves under thermal cycling.
How is mesh density related to soft vs. hard mesh performance?
Density and porosity are set independently of temper, but the two together drive real-world performance. A high-density soft mesh still conforms under load; a high-density hard mesh stays rigid and holds void volume.
What industries commonly require custom soft or hard knitted wire mesh?
Oil & gas, chemical processing, aerospace, automotive, electronics, insulation, and filtration are the main buyers of custom soft and hard knitted wire mesh.
